summary

The JP series outdoor integrated distribution box integrates multiple functions, including metering, power output, and reactive power compensation, to serve as an outdoor integrated distribution device. It features short-circuit, overload, overvoltage, and leakage protection. Compact in size, aesthetically pleasing, and cost-effective, this box is installed on the poles of outdoor column transformers, making it an ideal new-generation distribution product for urban and rural powergrid upgrades.

Use environmental conditions◆ Ambient temperature: -25℃+40℃;

◆ Relative air humidity: daily average value is not greater than 95%, monthly average value is not greater than 90%;

◆ Altitude: not more than 2000m;

◆ Install in a place without violent vibration and impact, no corrosive gas.

Design feature

The box structure is available in both vertical and horizontal configurations. The outer shell is crafted from high-quality 2mm stainless steel plates through a multi-winding process (or a honeycomb-structured double-layer composite plate of stainless steel, which offers flame retardancy, environmental friendliness, thermal insulation, and anti-dew properties). Special stainless steel welding techniques are used to ensure the box has high overall strength, a smooth surface like a mirror, and no visible weld marks. The internal beams (plates) are treated with hot-dip galvanizing to ensure they remain corrosion-resistant for up to twenty years. The front and rear doors of the box are designed for easy operation and maintenance, with high-elasticity, anti-aging sealing strips around the edges. Each door is equipped with both visible and hidden locks, with the visible lock featuring a rainproof cover to prevent blockage and rust. The metering chamber is fully enclosed and equipped with a lead seal device. The side of the box features rainproof and anti-particle cable conduits, while the bottom has ventilation holes and cable exit holes. The top includes a ventilation channel and a wire mesh, providing waterproof, rust-proof, dust-proof, and anti-particle protection. The protection rating is IP54.

Main technical parameters

Box body external dimensions

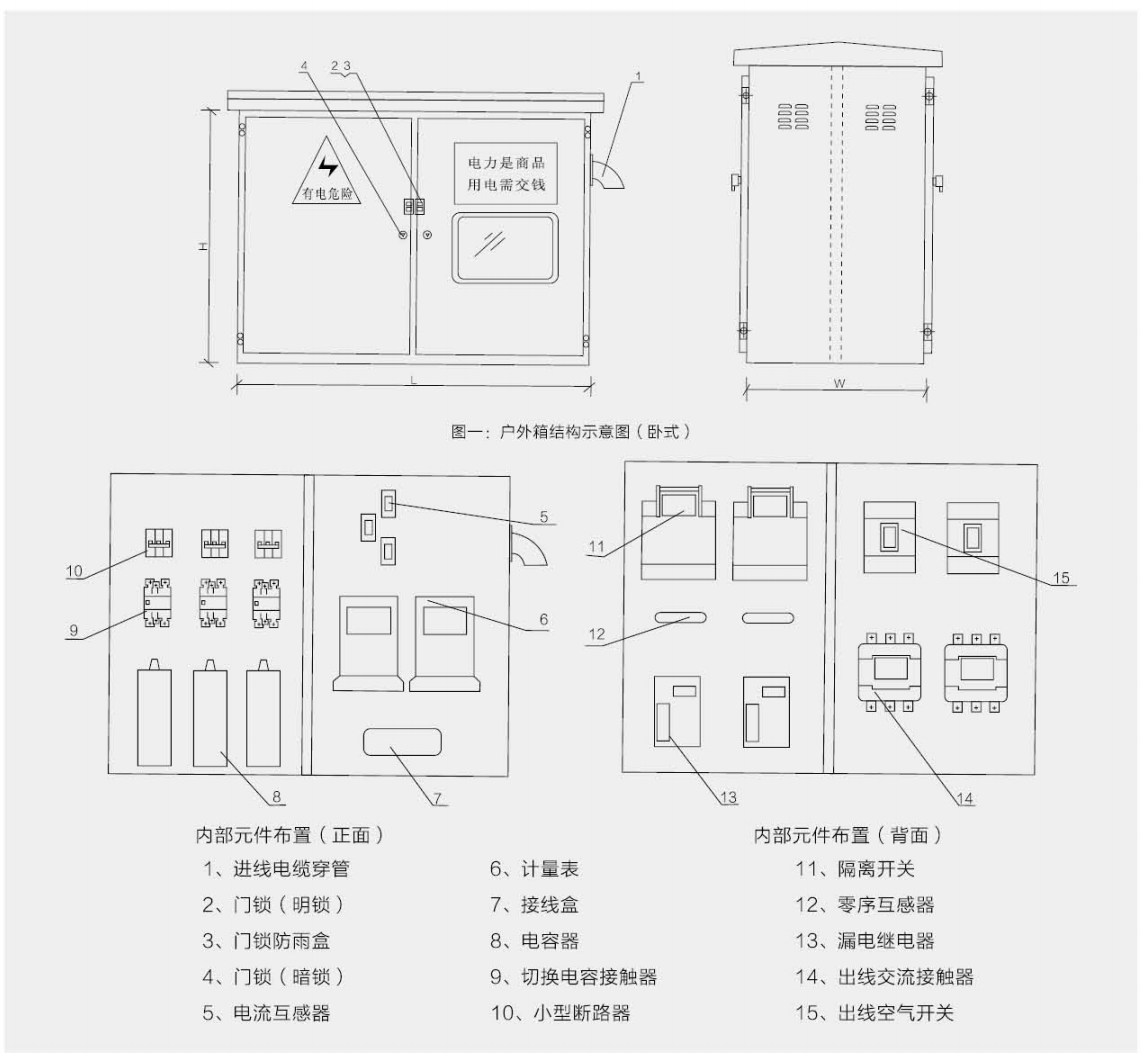

Horizontal box size

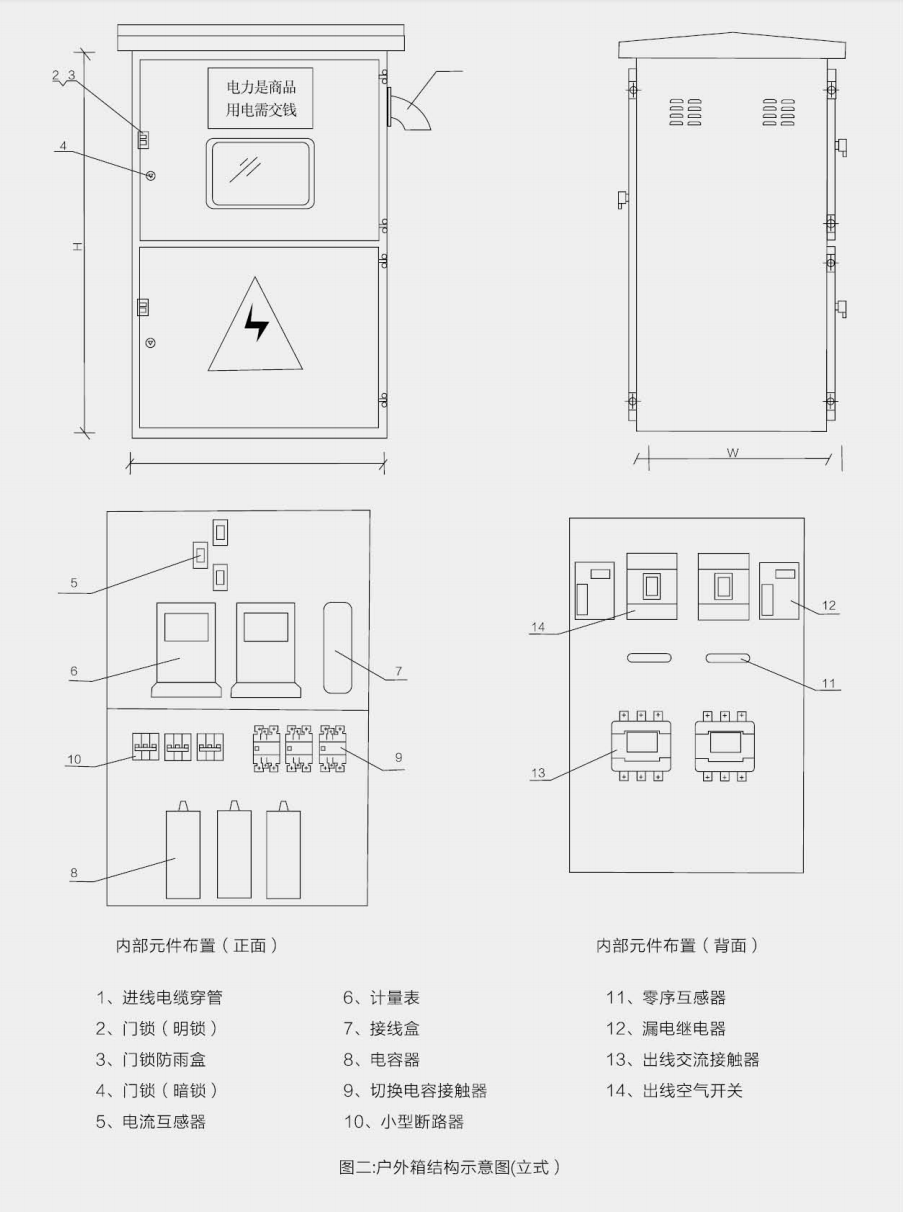

Vertical box size

Box body external dimensions
