summary

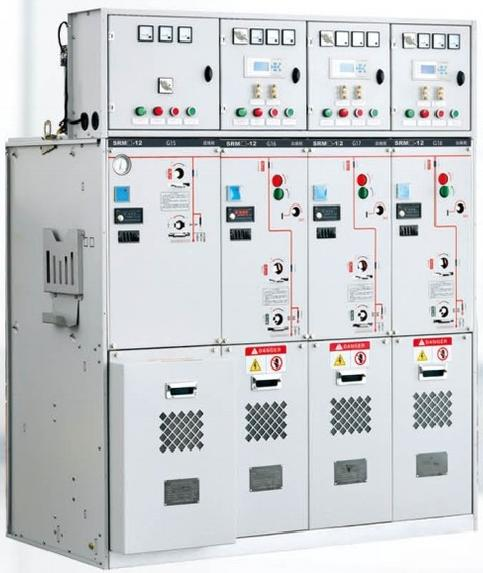

The KCSRM□-12 series ring network switchgear is a metal-enclosed, SF6 gas-insulated switchgear. It consists of load switch units, load switch fuse assemblies, vacuum circuit breaker units, and busbar incoming units. Utilizing advanced technologies and materials, this equipment boasts excellent electrical and mechanical performance, with minimal environmental and climatic impact. It is compact, easy to install, operates smoothly, requires no maintenance, and offers flexible configuration options. Its clear and intuitive design ensures simple and direct operation.

The feeder has large wiring capacity and is suitable for a variety of wiring systems.

 Product features

handling safety ：

Through the following security measures, we can provide users with special security guarantees:

Integrated three-position load switch

The circuit breaker uses a load switch to replace the isolating switch, making it safer and more reliable. The fully enclosed design on the primary side provides protection against accidental contact, meeting the five-prevention requirements. The mechanical interlock live display can provide reliable indications of live circuits entering and exiting. The fully enclosed design ensures that all 10kV switches and busbar live parts are sealed in a gas box made from 3mm stainless steel plates. Silicone rubber cable plugs ensure full insulation and sealing of the cable heads, protecting them from dust, moisture, and small animals. The spring energy storage operating mechanism can be operated manually or electrically. The panel simulates line diagrams to indicate the switch position. The cabinet is made of galvanized steel with an electrostatic spray coating to enhance its corrosion resistance. A pressure gauge monitors the safety pressure range of SF6 gas inside the box.

economical efficiency ：

maintenance-free

High reliability

Service life can reach 20 years Flexible scheme:

Multiple incoming line modes can realize left, right, up or forward line, and multiple combination modes can realize any combination between each unit. Insulated busbar can be used to realize front and rear cabinet or left and right cabinet. The design scheme is flexible

wide application ：

The outgoing line has large capacity and small footprint, which is suitable for a variety of application requirements.
