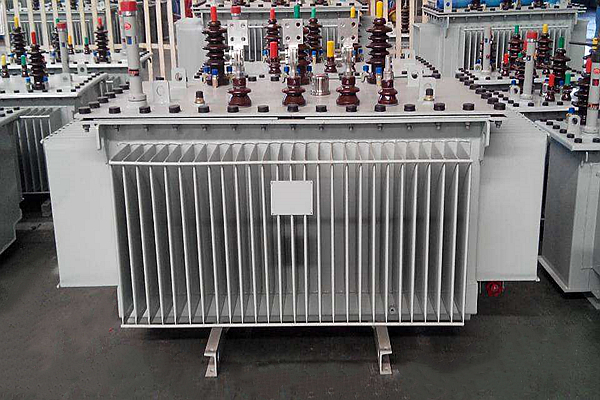

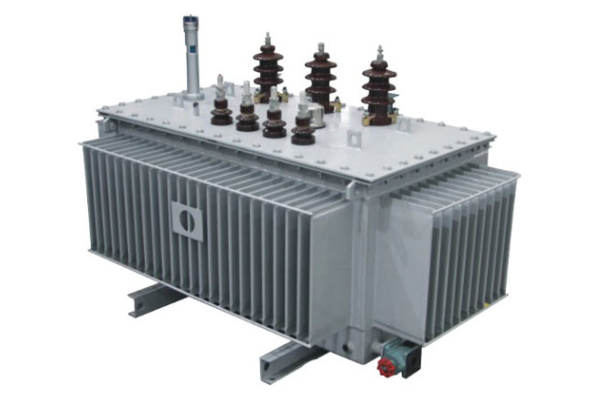

Amorphous alloy transformer (oil transformer)

Amorphous alloy transformers have obvious advantages in low no-load loss, energy saving, and environmental protection, which is in line with the industrial policy advocated by the Chinese government of "saving resources, protecting the environment, and building a conservation oriented society". According to relevant data on China's power development, the output of distribution transformers in China was 240 million KVA in 2004. If 30% uses amorphous alloy iron cores, it can save 1.14 billion KWh of electricity and reduce the emission of harmful gases from coal-fired power generation by 11000 tons. Save 433000 tons of coal. The product is suitable for single-phase transformers ranging from 5KVA to 100KVA, three-phase five column transformers ranging from 30KVA to 2500KVA, and three-phase three column transformers, saving 70% energy compared to traditional transformers.


Amorphous alloy is a new type of energy-saving material that uses rapid rapid quenching and solidification production process. Its physical state is characterized by disordered amorphous arrangement of metal atoms, which is completely different from the crystal structure of silicon steel and is more conducive to magnetization process. This greatly reduces the no-load loss of transformers. If used in oil immersed transformers, it can also reduce harmful gases such as CO, SO, NOx, etc., and is known as the "green material" of the 21st century.
